Features

• Non-dust FIBC discharging system. Because it is in a closed state, there is no dust and no loss of raw materials.
• There is also no dust when handling the empty bags. After the raw materials are discharged, the air inside the FIBC is exhausted, so there is no dust when handling empty bags.
• It is also easy to remove from the unit. Uses the bag retainer (TCM) for automatic release.

Model and parameters

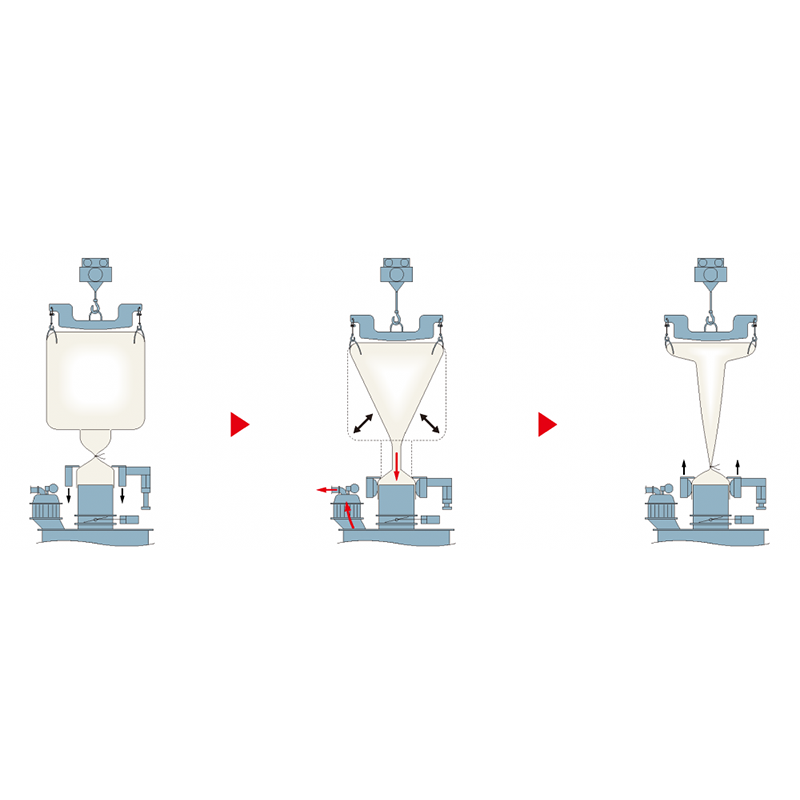

Flow chart

•

  ① Take out the lower discharging port of FIBC, install the discharging device, and fix it with a pneumatic chuck.
  After the fixation is completed, remove the outlet sealing rope and start operation.

•

•

  ② The device performs a discharge-promoting operation, controls the FIBC to repeatedly expand and contract, and discharges the remaining raw materials inside the FIBC.

•

•

  ③ After discharging, the air removal effect is achieved by sucking out the residual air inside the FIBC, so there is no dust when handling empty bags.
